Jet nozzle, made by plastic, with adjustable head in any direction. Active diameter 42mm. It is produced only in some colors. For wall (for cooling and heating) or ceiling (only for heating, for air-curtain or to avoid condensation in glass surfaces) installation.
Is available in the following executions:

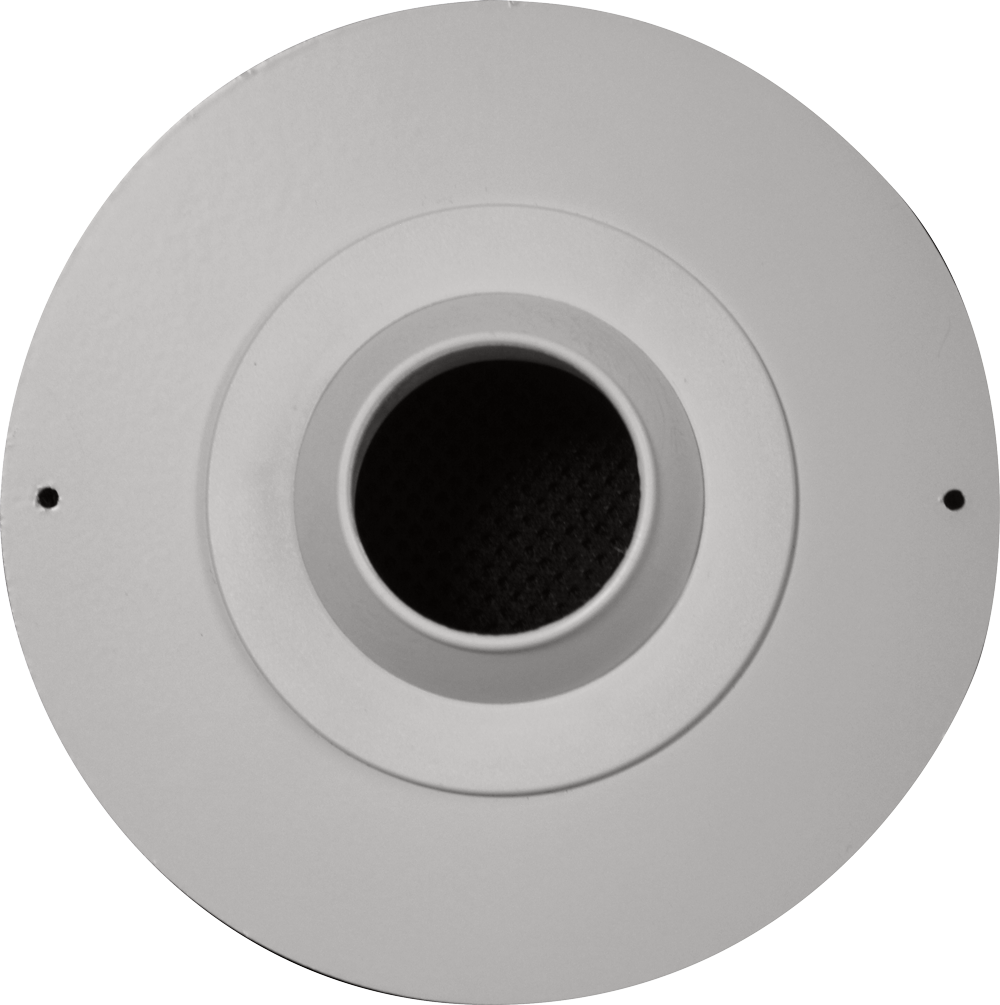

- AMB-RP-Φ42: For single installation in round hole. With round frame.

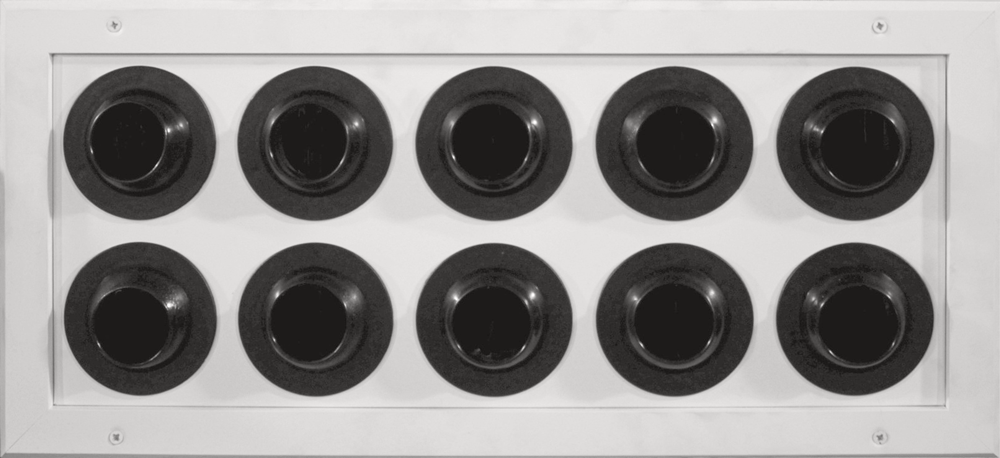

- AMB-AP-Φ42: Set of many jet nozzles in rectangular frame made by aluminium, anodized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible.
- AMB-AP-Φ42-D/DK: Set of many jet nozzles in rectangular frame made by aluminium, anodized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible. With air volume control damper with simultaneously opposite rotated blades (-D) or flap type (-DK).

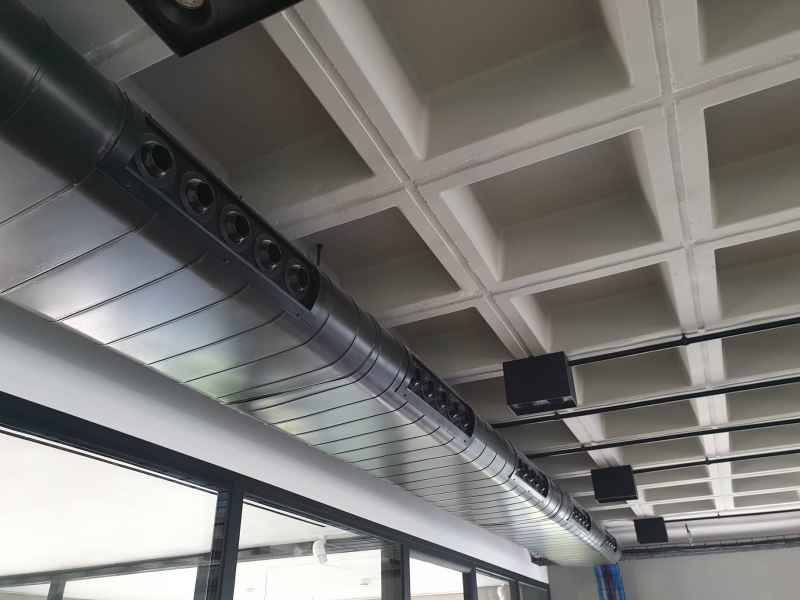

- AMB-AP-SR-Φ42: Set of many jet nozzles, in rectangular frame, curved for direct installation in the side of round air duct. The frame is manufactured by sheet steel galvanized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible.
- AMB-AP-SR-Φ42-D/DK: Set of many jet nozzles, in rectangular frame, curved for direct installation in the side of round air duct. The frame is manufactured by sheet steel galvanized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible. With air volume control damper with simultaneously opposite rotated blades (-D) or flap type (-DK).
- AMB-AP-Φ42-AUTH: Set of many jet nozzles in rectangular subframe made by aluminium, anodized or painted electrostatically in RAL color. The subframe is rotated up and down in relation with the external frame. The external frame is also made by aluminium, anodized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible. With mechanism for the automatic adjustment of the subframe angle according to the supply air temperature. Maximum dimension 8X2 jets.
- AMB-AP-Φ42-ON OFF 220V: Set of many jet nozzles in rectangular subframe made by aluminium, anodized or painted electrostatically in RAL color. The subframe is rotated up and down in relation with the external frame. The external frame is also made by aluminium, anodized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible. The subframe angle is adjusted by electric actuator ON OFF 220V. Maximum dimension 10X2 jets.
- AMB-AP-Φ42- ANALOGUE 24V: Set of many jet nozzles in rectangular subframe made by aluminium, anodized or painted electrostatically in RAL color. The subframe is rotated up and down in relation with the external frame. The external frame is also made by aluminium, anodized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible. The subframe angle is adjusted by electric actuator ANALOGUE 24V. Maximum dimension 10X2 jets.
