AMB-Φ22


Jet nozzle, made by plastic, with adjustable head in any direction. Active diameter 22mm. It is produced only in some colors. For wall (for cooling and heating) or ceiling (only for heating, for air-curtain or to avoid condensation in glass surfaces) installation.


Is available in the following executions:

  • AMB-RP-Φ22: For single installation in round hole. With round frame.

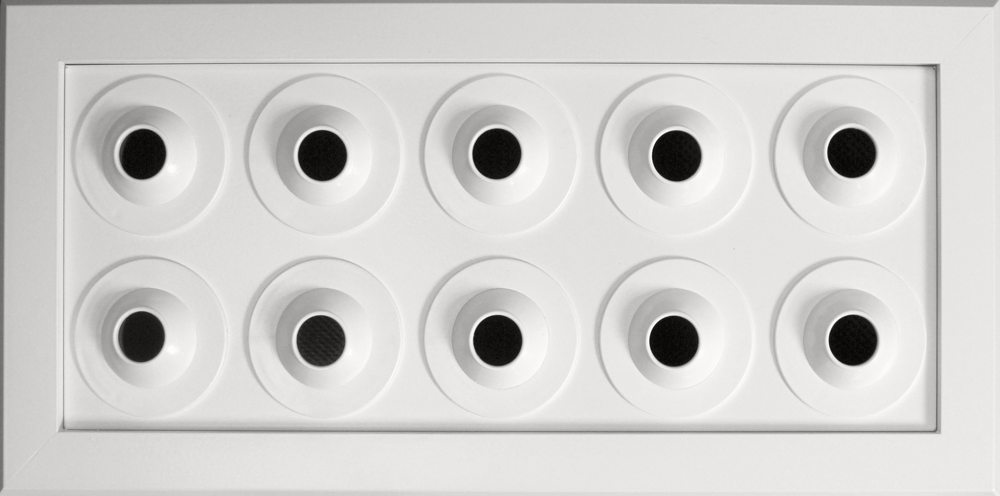

  • AMB-AP-Φ22: Set of many jet nozzles in rectangular frame made by aluminium, anodized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible.
  • AMB-AP-Φ22-D/DK: Set of many jet nozzles in rectangular frame made by aluminium, anodized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible. With air volume control damper with simultaneously opposite rotated blades (-D) or flap type (-DK).
  • AMB-AP-SR-Φ22: Set of many jet nozzles, in rectangular frame, curved for direct installation in the side of round air duct. The frame is manufactured by sheet steel galvanized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible.
  • AMB-AP-SR-Φ22-D/DK: Set of many jet nozzles, in rectangular frame, curved for direct installation in the side of round air duct. The frame is manufactured by sheet steel galvanized or painted electrostatically in RAL color. Only the adjustable heads of the plastic jet nozzles (they are produced in certain colors) are visible. With air volume control damper with simultaneously opposite rotated blades (-D) or flap type (-DK).
