Supply or return air grilles with curved frame for direct installation in the side of round air duct. The frame is manufactured by galvanized steel sheet or steel sheet electrostatically painted in RAL color.
Is available in the following executions:

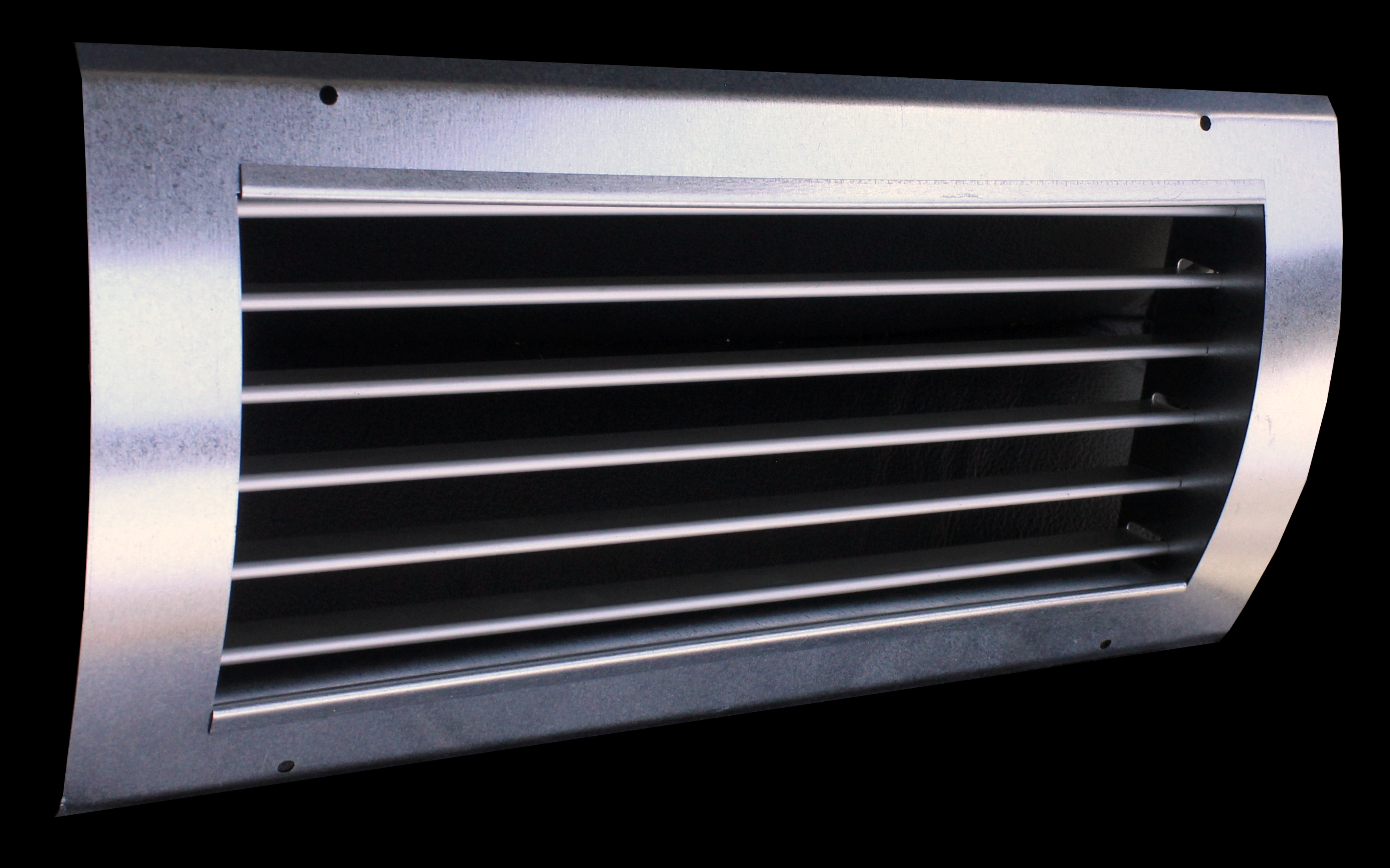

- Τ1P-SR: With one row of adjustable blades made by anodized or electrostatically painted in RAL color aluminium.

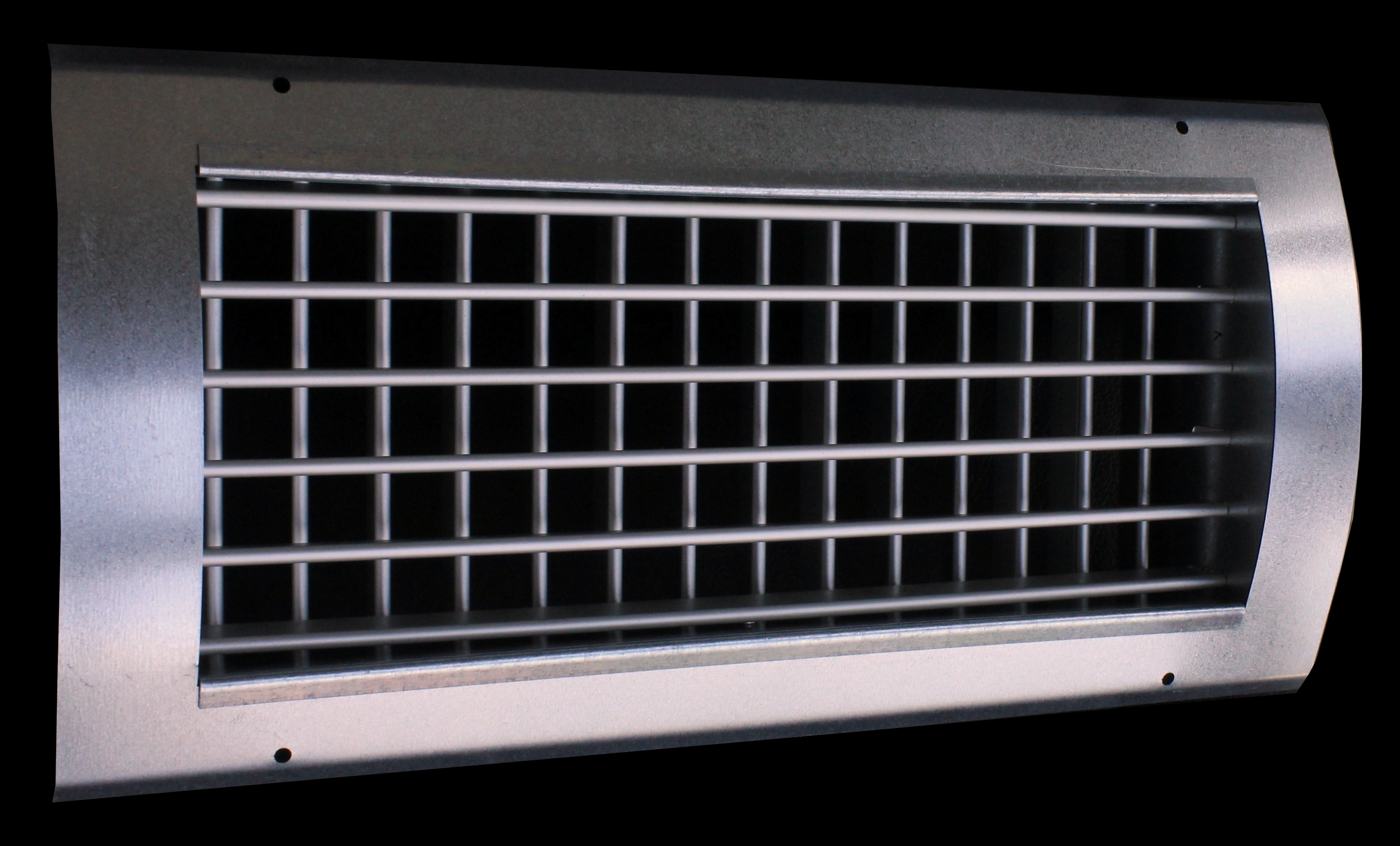

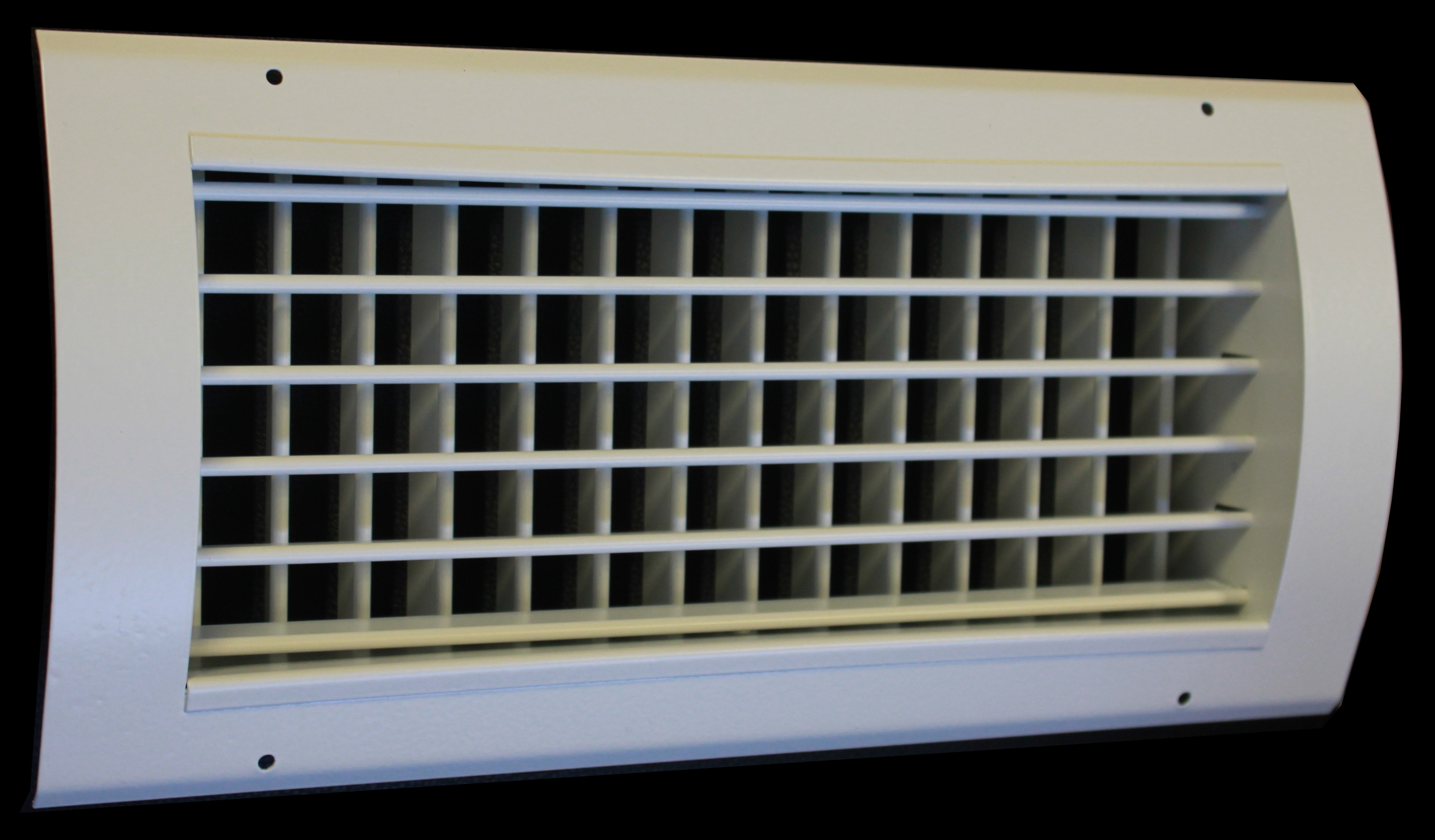

- Τ2P-SR: With two rows of adjustable blades made by anodized or electrostatically painted in RAL color aluminium.

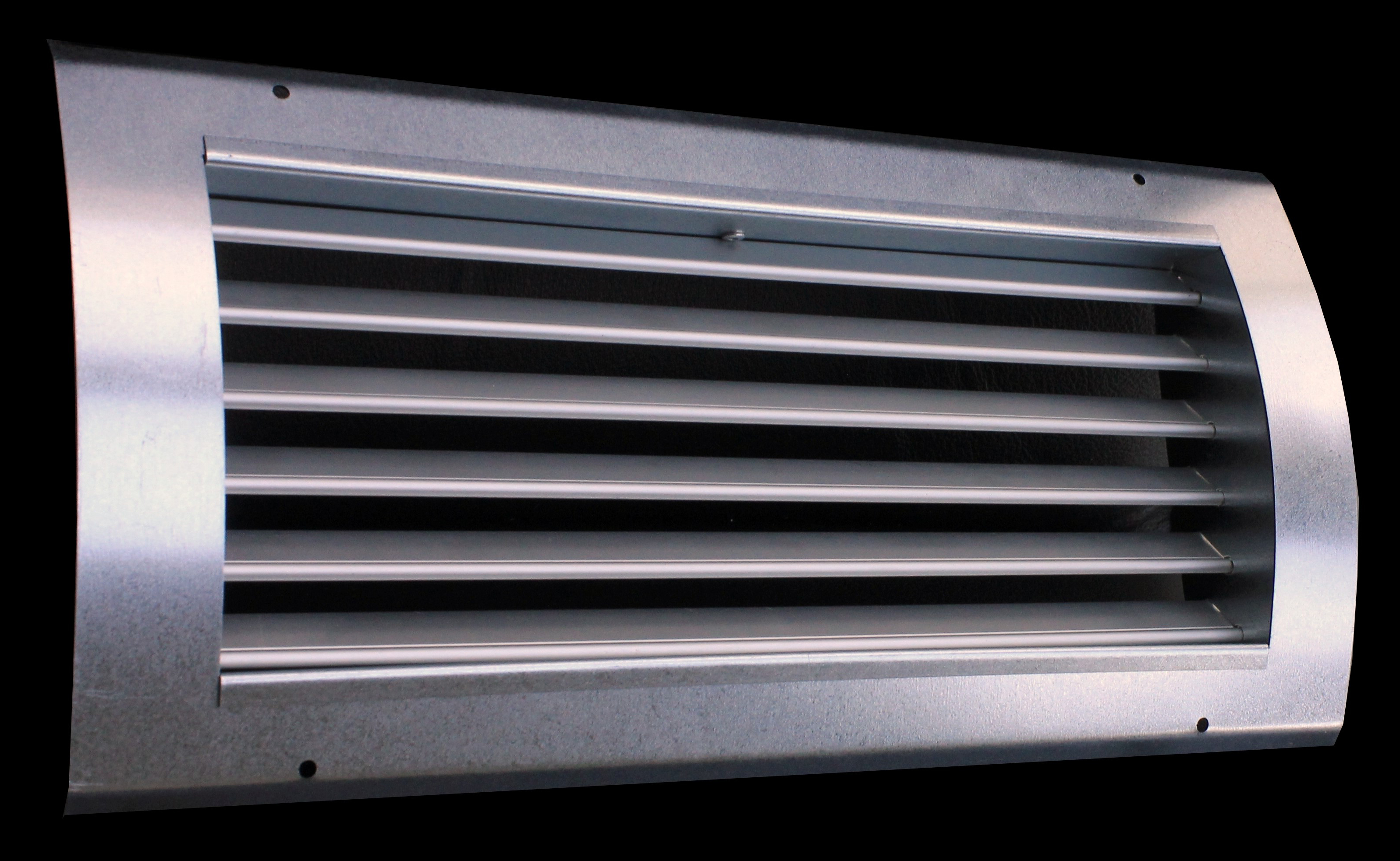

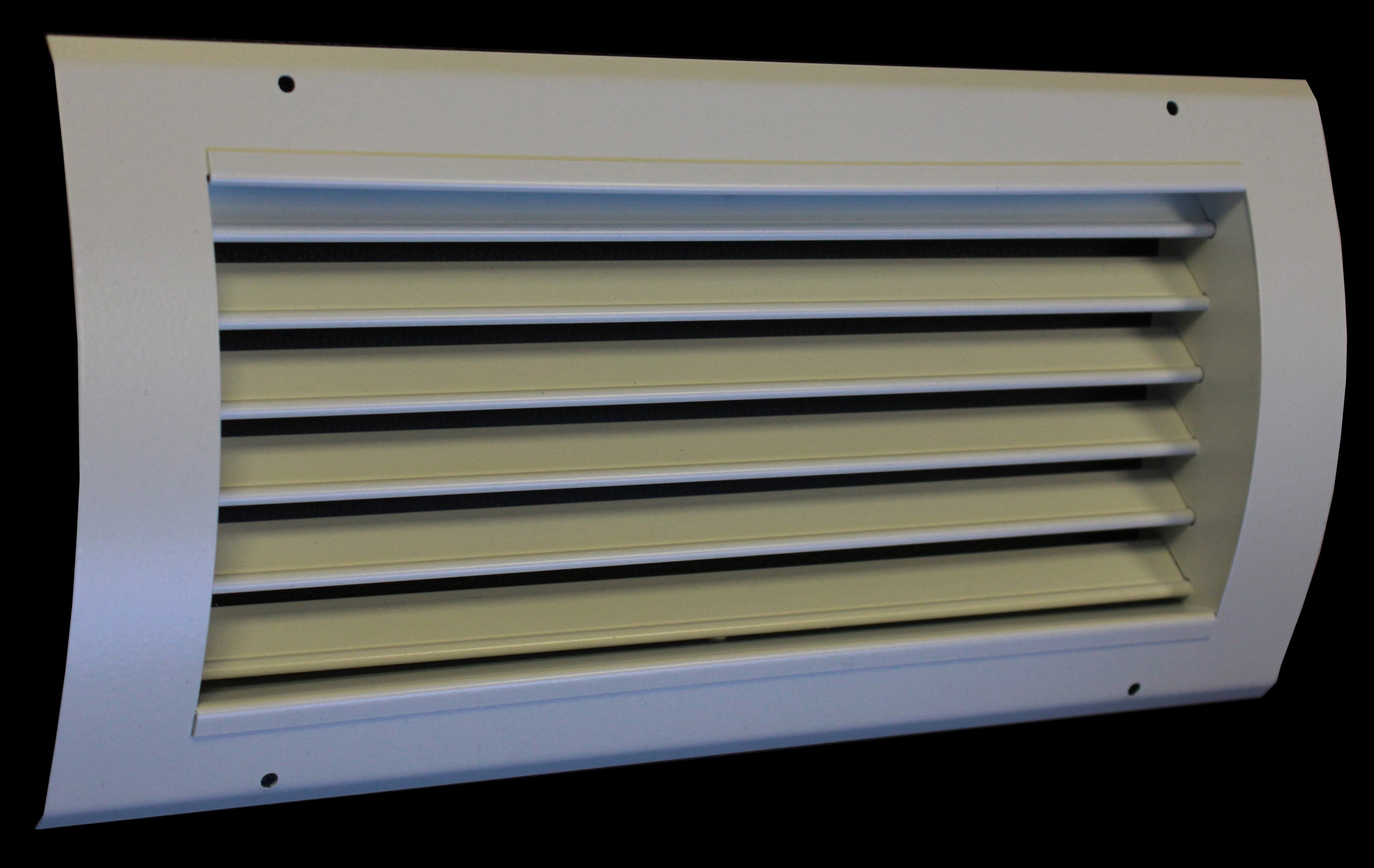

- ΤΕP-SR: With one row of fixed blades made by anodized or electrostatically painted in RAL color aluminium.

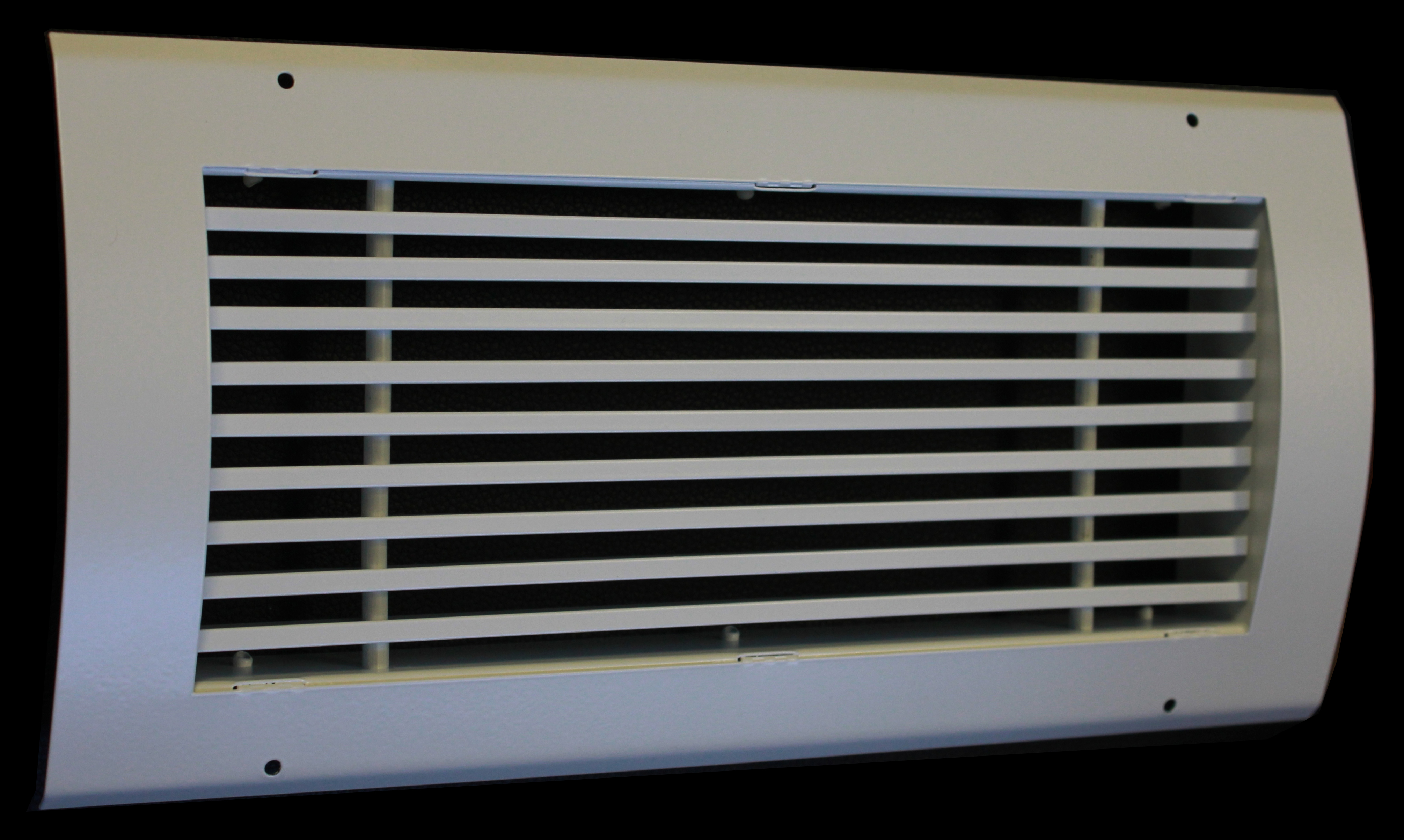

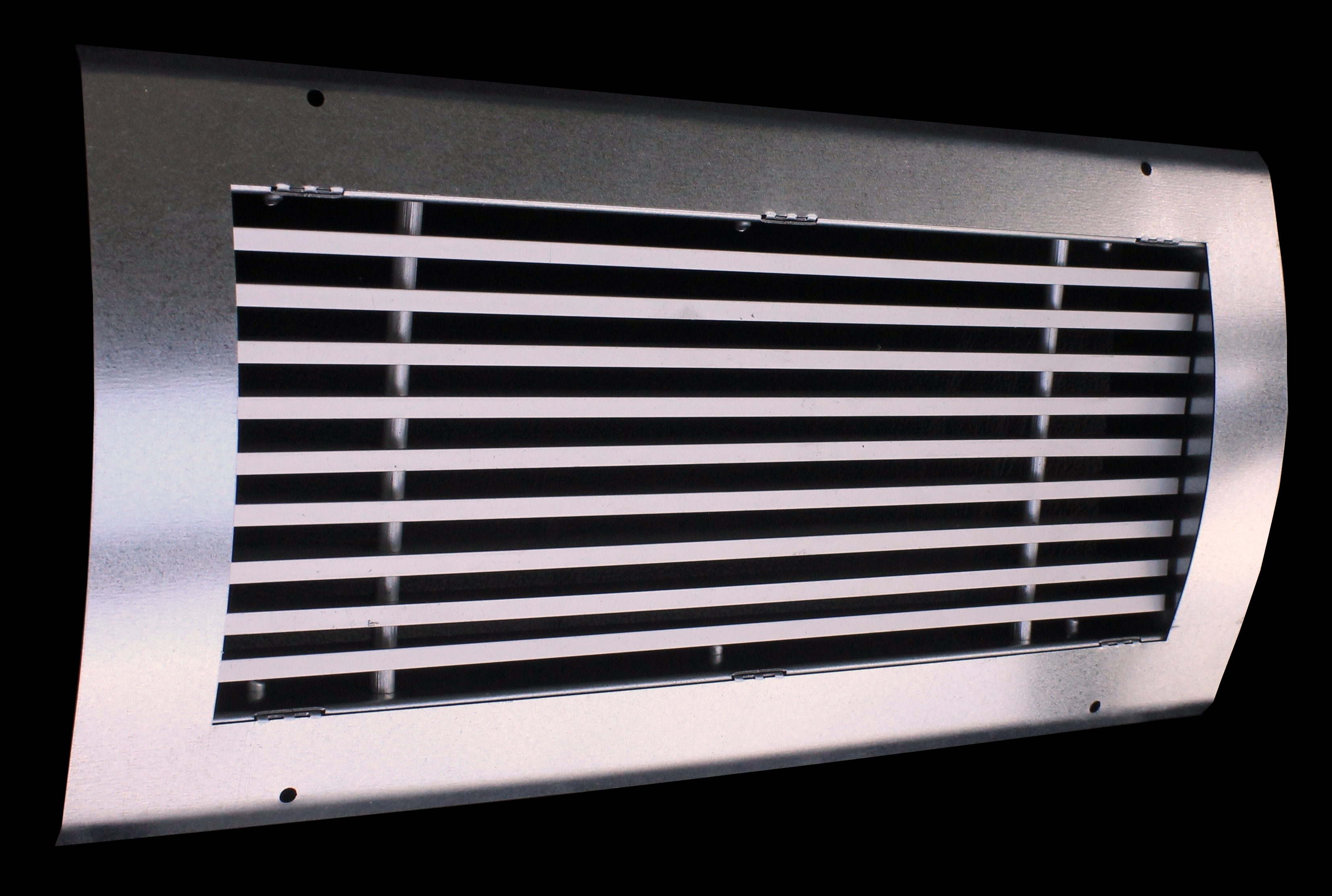

- E12-SR: Linear, with one row of fixed blades, 12mm spaced, made by anodized or electrostatically painted in RAL color aluminium.

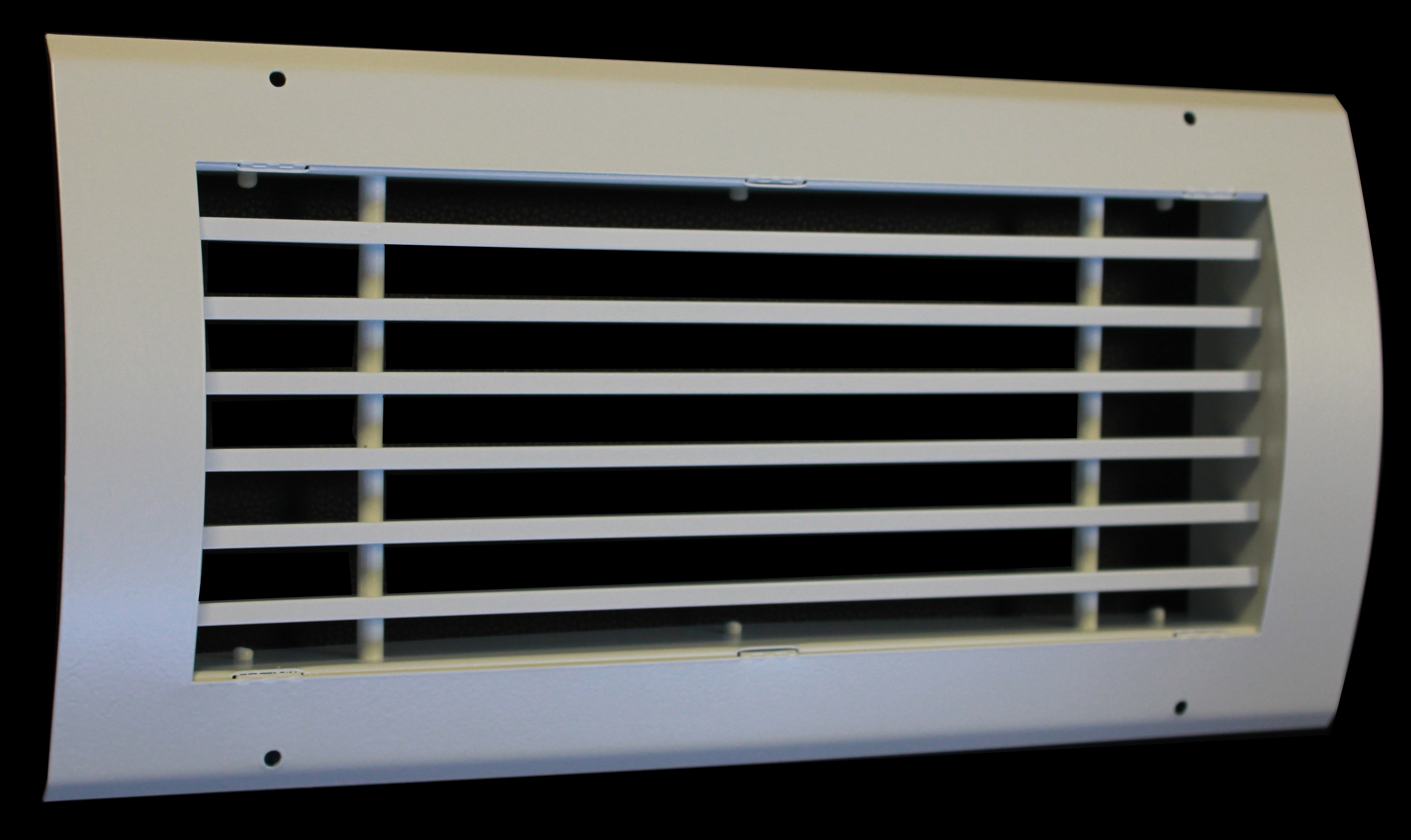

- E17-SR: Linear, with one row of fixed blades, 17mm spaced, made by anodized or electrostatically painted in RAL color aluminium.

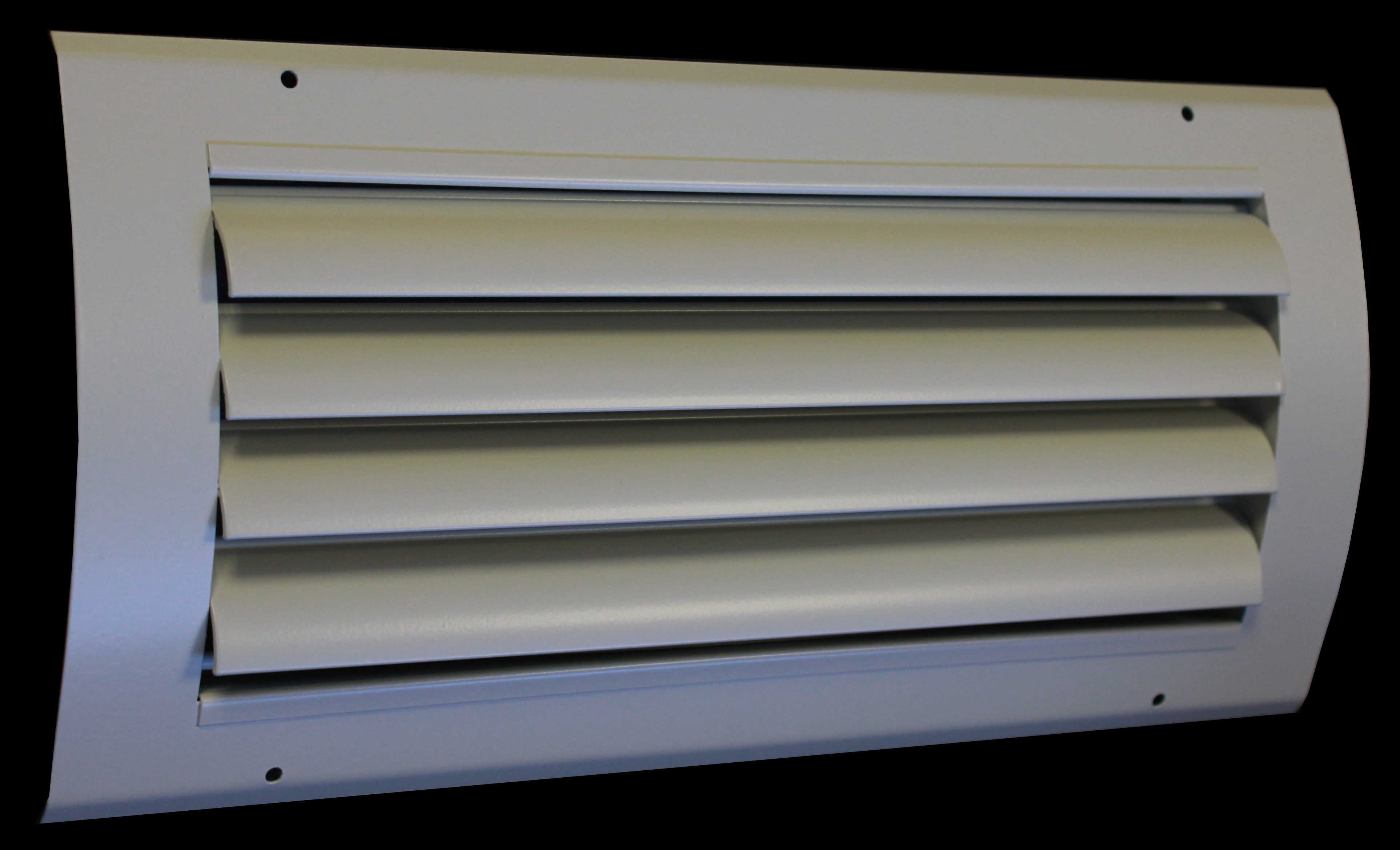

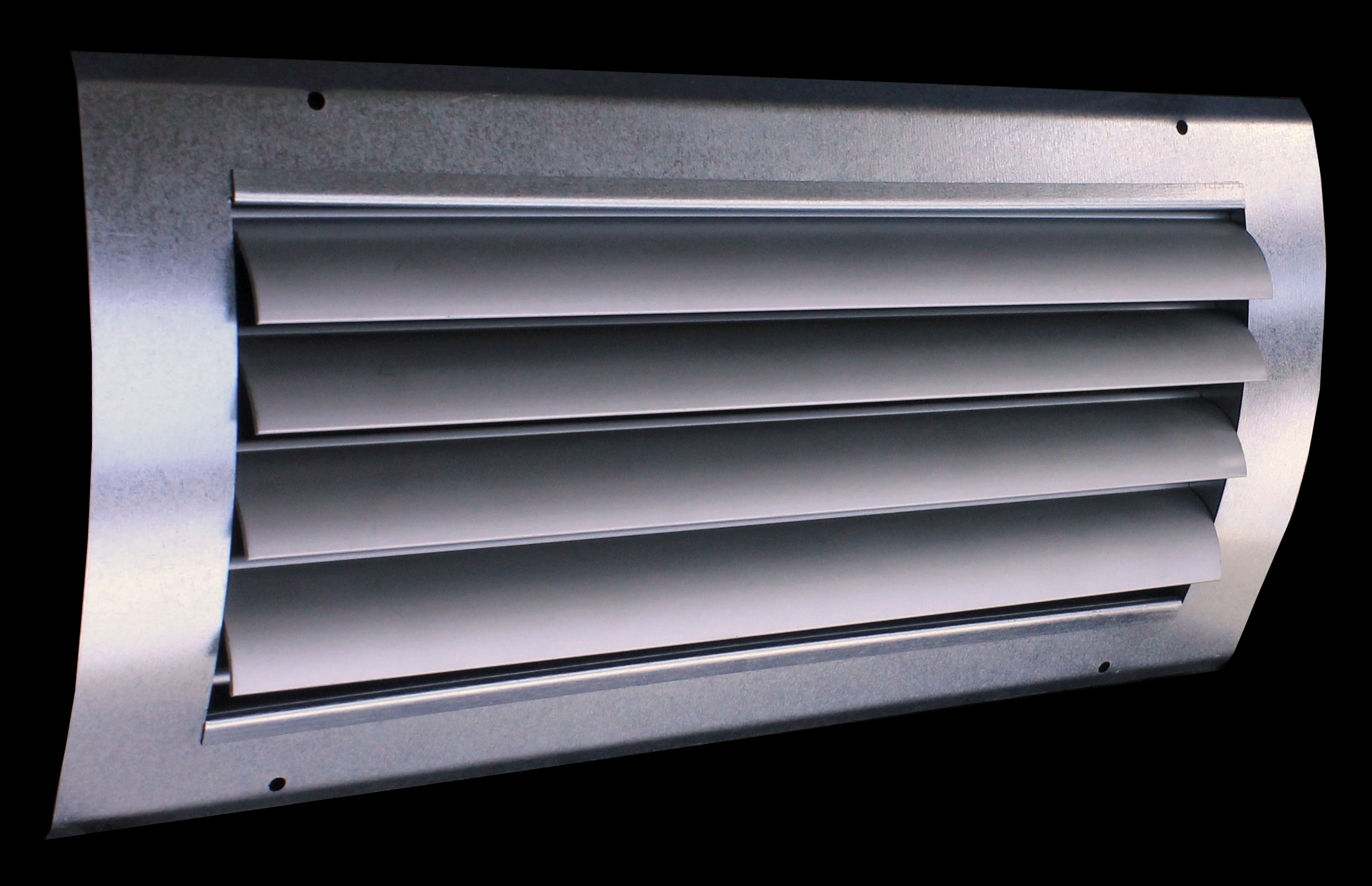

- ΟΚ1-SR: With adjustable curved blades made by anodized or electrostatically painted in RAL color aluminium. Air distribution in one direction.

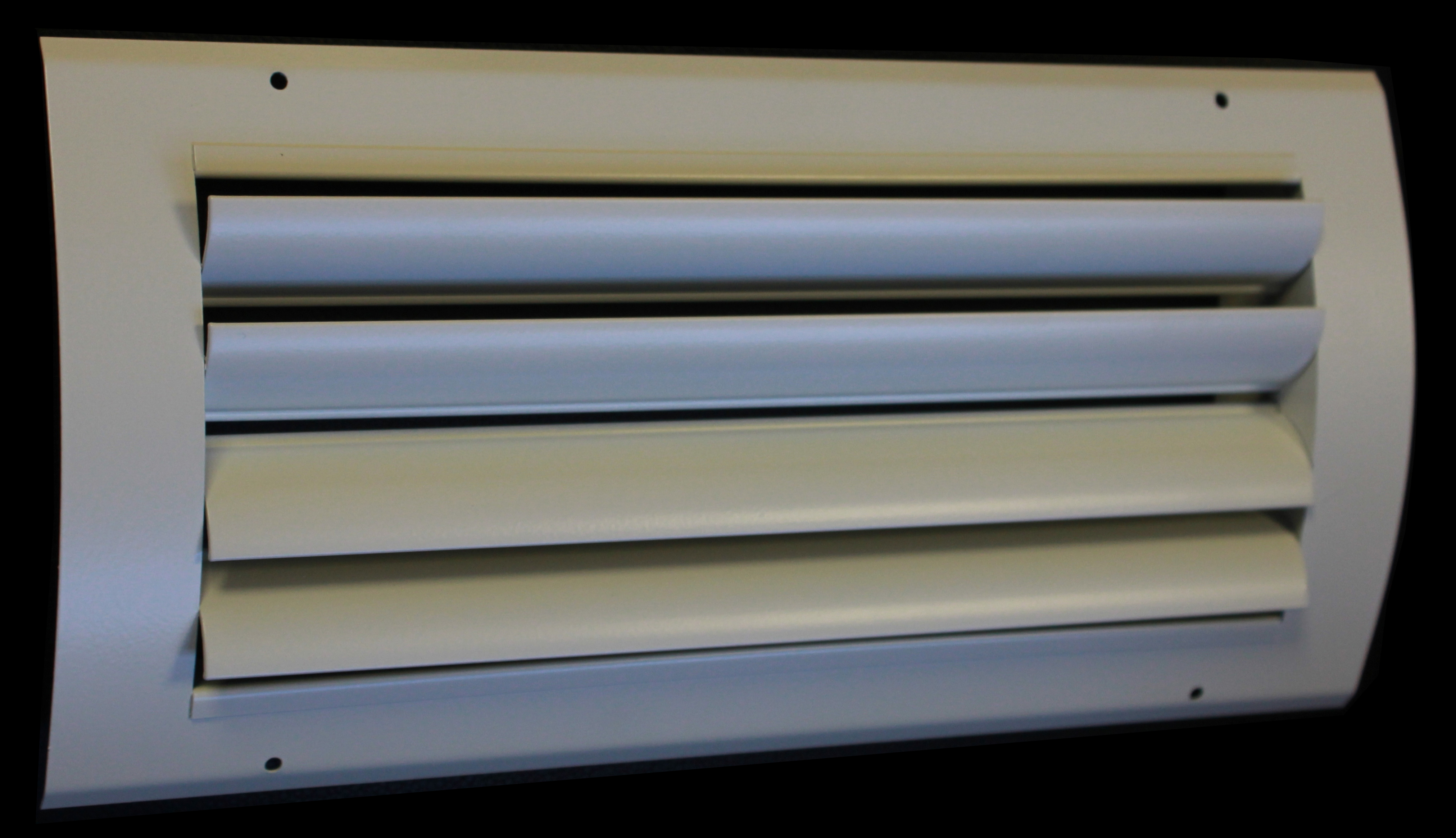

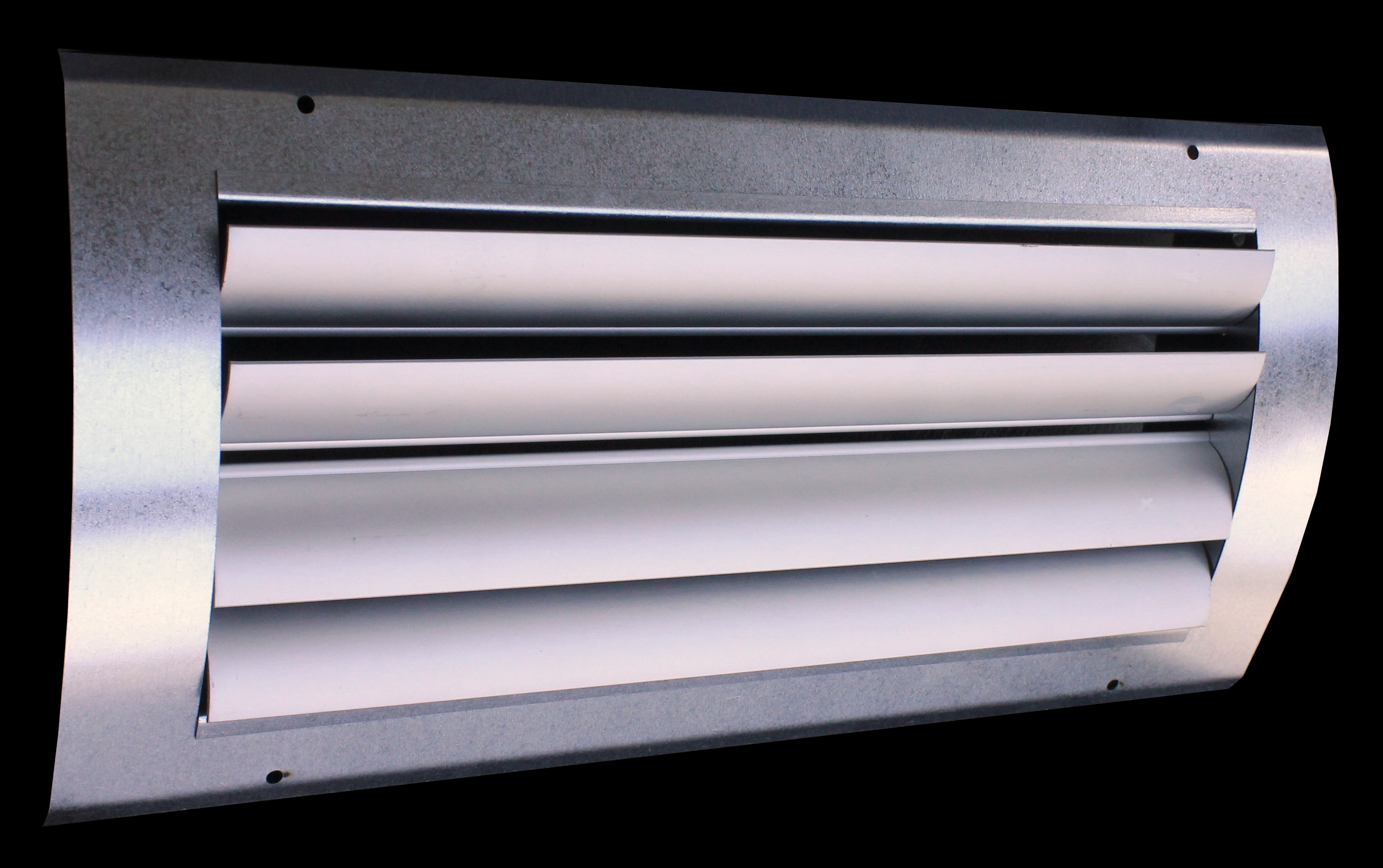

- ΟΚ2-SR: With adjustable curved blades made by anodized or electrostatically painted in RAL color aluminium. Air distribution in two directions.
- AMB-KSR: Jet diffuser, round, made by aluminium electrostatically painted in RAL color. With adjustable head, manually in all directions or with electric actuator (on-off 220V or analogue 24V) up and down, for regulation of the air jet.

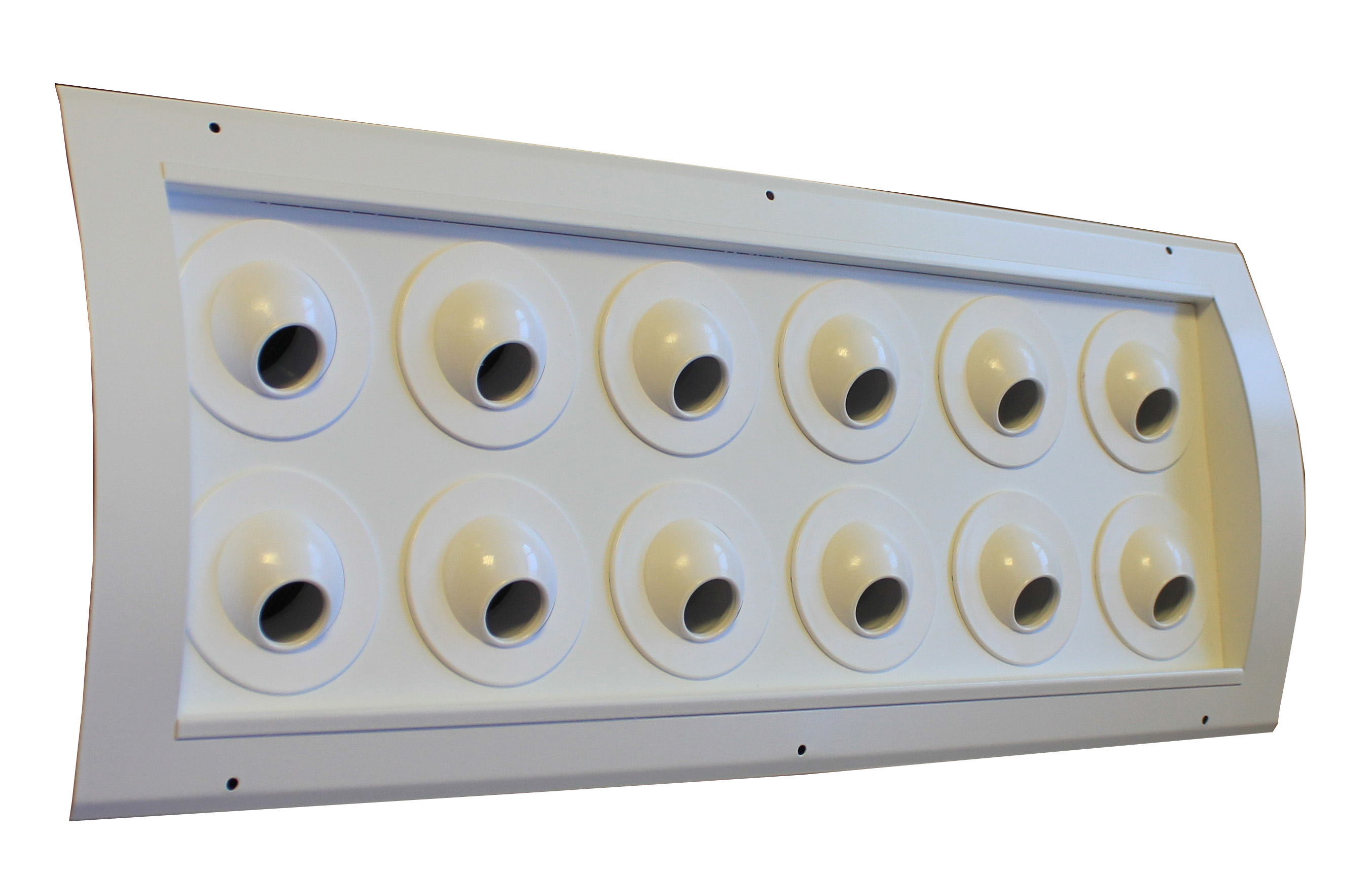

- AMB-AP-SR-O22: Set of many jet nozzles, inside rectangular frame curved for direct installation in the side of round air duct. Jet nozzles they have square front plate, adjustable head with active diameter 22mm and they are manufactured by plastic only in some colors. The frame is manufactured by sheet steel galvanized or painted electrostatically in RAL color.
- AMB-AP-SR-O42: Set of many jet nozzles, inside rectangular frame curved for direct installation in the side of round air duct. Jet nozzles they have square front plate, adjustable head with active diameter 42mm and they are manufactured by plastic only in some colors. The frame is manufactured by sheet steel galvanized or painted electrostatically in RAL color.
