DKG

Fireplace grilles made of anodized aluminium. They are manufactured to specific dimensions. Secret fixing with springs or silicone otherwise with visible screws.

Produced in the following types:

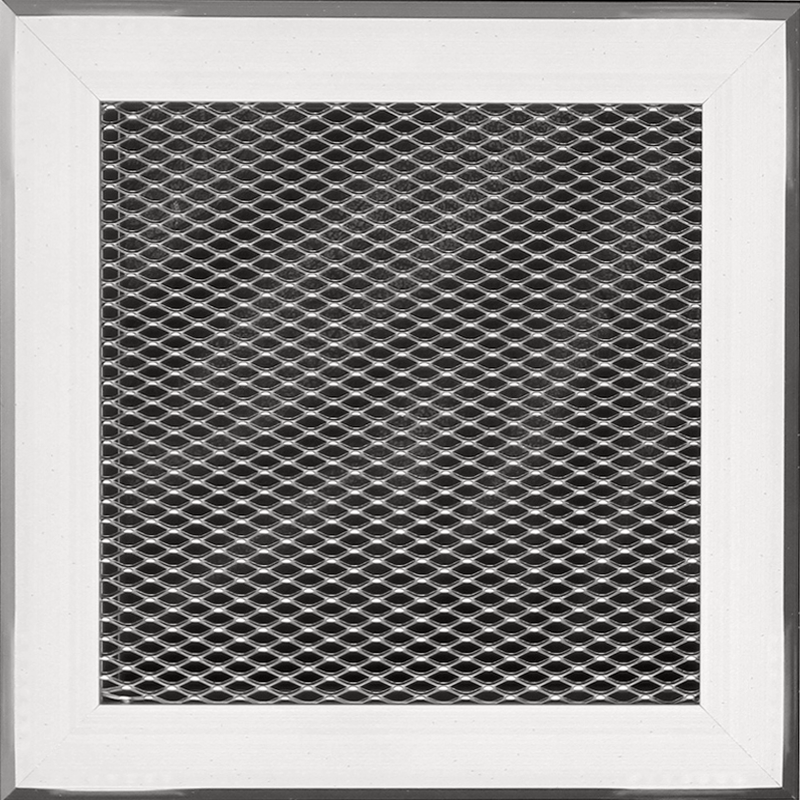

• DKG-PL: With galvanized wire mesh.
• DKG-PL-D: With galvanized wire mesh and air volume control damper.

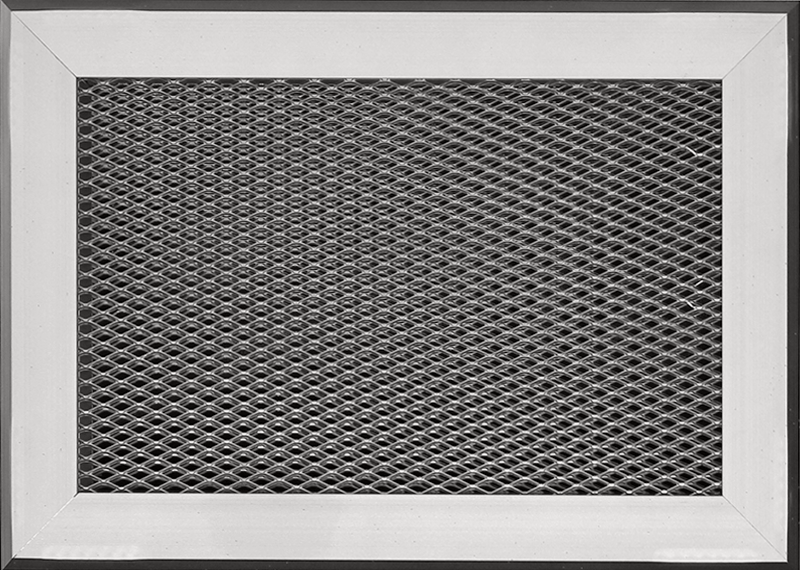

• DKG-2PL: With two galvanized wire meshes.
• DKG-2PL-D: With two galvanized wire meshes and air volume control damper.
• DKG-T1P: With one row of adjustable blades.
• DKG-T1P-D: With one row of adjustable blades and air volume control damper.
• DKG-T1P-PL: With one row of adjustable blades and galvanized wire mesh.
• DKG-PL-T1P: With galvanized wire mesh and one row of adjustable blades.
• DKG-PL-T1P-D: With galvanized wire mesh, one row of adjustable blades and air volume control damper.
• DKG-T1P-PL-D: With one row of adjustable blades, galvanized wire mesh and air volume control damper.
• DKG-TΕP: With one row of fixed blades in angle 45°.
• DKG-TΕP-D: With one row of fixed blades in angle 45° and air volume control damper.
• DKG-TΕP-PL: With one row of fixed blades in angle 45° and galvanized wire mesh.
• DKG-PL-TΕP: With galvanized wire mesh and one row of fixed blades in angle 45°.
• DKG-PL-TΕP-D: With galvanized wire mesh, one row of fixed blades in angle 45° and air volume control damper.
• DKG-TΕP-PL-D: With one row of fixed blades in angle 45°, galvanized wire mesh and air volume control damper.
• DKG-E17: With one row fixed blades, 17mm spaced.
• DKG-E17-15: With one row fixed blades, 17mm spaced and 15° deflected.
• DKG-E17-PL: With one row fixed blades, 17mm spaced and galvanized wire mesh.
• DKG-E17-15-PL: With one row fixed blades, 17mm spaced, 15° deflected and galvanized wire mesh.
• DKG-PL-E17: With galvanized wire mesh and one row fixed blades, 17mm spaced.
• DKG-PL-E17-15: With galvanized wire mesh and one row fixed blades, 17mm spaced, 15° deflected.
• DKG-E17-D: With one row fixed blades, 17mm spaced and air volume control damper.
• DKG-E17-15-D: With one row fixed blades, 17mm spaced, 15° deflected and air volume control damper.
• DKG-PL-E17-D: With galvanized wire mesh and one row fixed blades, 17mm spaced and air volume control damper.
• DKG-E17-PL-D: With one row fixed blades, 17mm spaced, galvanized wire mesh and air volume control damper.
• DKG-PL-E17-15-D: With galvanized wire mesh, one row fixed blades, 17mm spaced, 15° deflected and air volume control damper.
• DKG-E17-15-PL-D: With one row fixed blades, 17mm spaced, 15° deflected, galvanized wire mesh and air volume control damper.
• DKG-E12: With one row fixed blades, 12mm spaced.
• DKG-E12-15: With one row fixed blades, 12mm spaced and 15° deflected.
• DKG-E12-PL: With one row fixed blades, 12mm spaced and galvanized wire mesh.
• DKG-PL-E12: With galvanized wire mesh and one row fixed blades, 12mm spaced.
• DKG-E12-15-PL: With one row fixed blades, 12mm spaced, 15° deflected and galvanized wire mesh.
• DKG-PL-E12-15: With galvanized wire mesh and one row fixed blades, 12mm spaced, 15° deflected.
• DKG-E12-D: With one row fixed blades, 12mm spaced and air volume control damper.
• DKG-E12-15-D: With one row fixed blades, 12mm spaced, 15° deflected and air volume control damper.
• DKG-PL-E12-D: With galvanized wire mesh, one row fixed blades, 12mm spaced and air volume control damper.
• DKG-E12-PL-D: With one row fixed blades, 12mm spaced, galvanized wire mesh and air volume control damper.
• DKG-PL-E12-15-D: With galvanized wire mesh, one row fixed blades, 12mm spaced, 15° deflected and air volume control damper.
• DKG-E12-15-PL-D: With one row fixed blades, 12mm spaced, 15° deflected, galvanized wire mesh and air volume control damper.

• PN: Plenum box made by galvanized steel sheet for grilles DKG-type. With one or more round necks, if the box dimensions allow it. Might there be gaps in the back of the box (-K), if the box dimensions allow it.
• FAE: Plenum box by galvanized steel sheet with fan included for grilles type DKG-T1P or DKG-TEP or DKG-E12 or DKG-E17 or DKG-PL.
• ATS: Air transfer system between rooms, which consists of rectangular telescopic air duct made by galvanized steel sheet with fan included. In the two ends are installed grilles type DKG-T1P or DKG-TEP or DKG-E12 or DKG-E17 or DKG-PL.

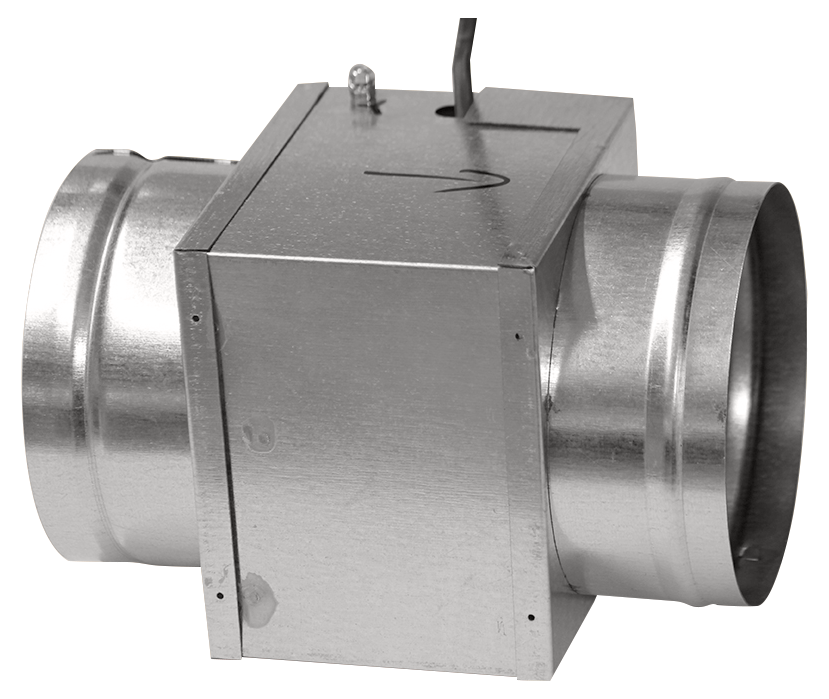

• MF: Fan inserted among air ducts to enhance the air circulation in fireplaces. Fan is installed into a box with two necks made by galvanized steel sheet. The two necks are proper for connection with air duct with diameter 125mm.
• DKG-DAF: Circular damper made by galvanized steel sheet which is controlled manually remotely by a flexible cable and a special controller. Possible diameters: 100, 120 and 150mm.
