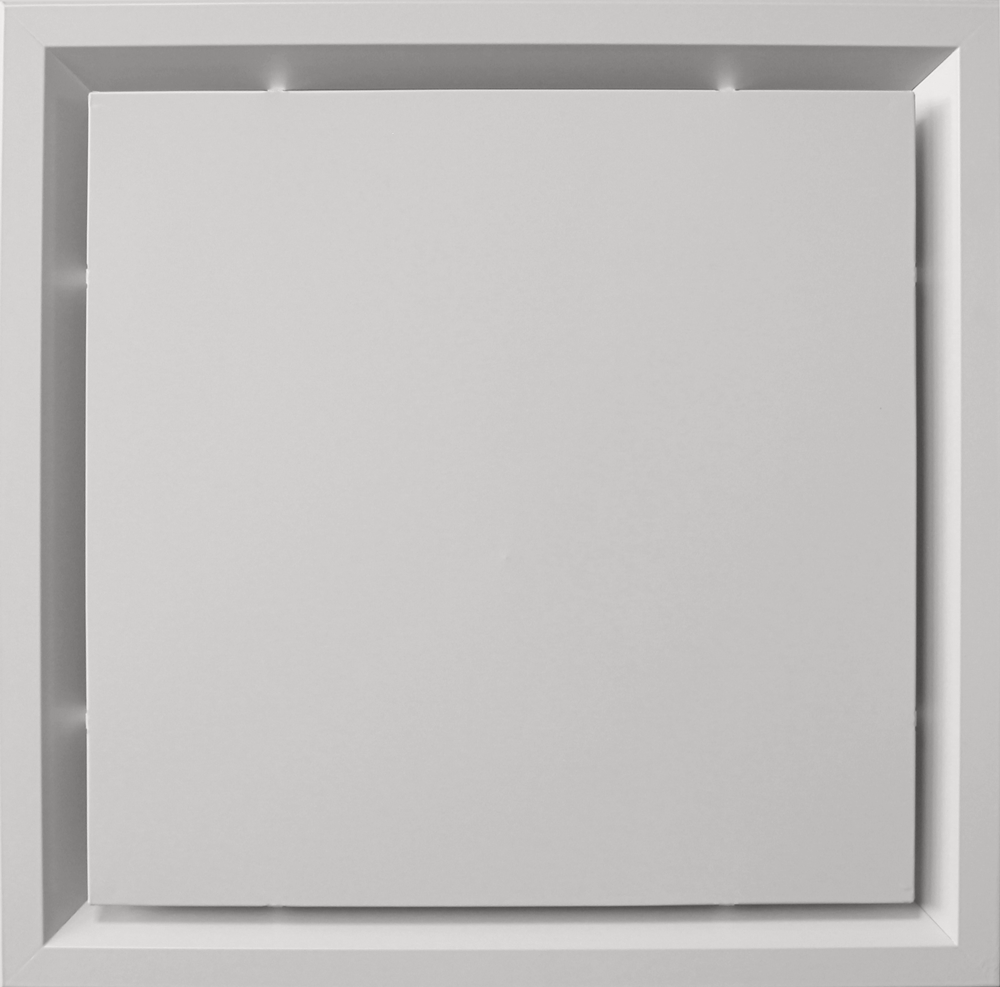

Square, 4-way, ceiling archtectural diffuser. For supply or return air applications. Made from steel and aluminium painted electrostatically in RAL color. With fixed central square piece.

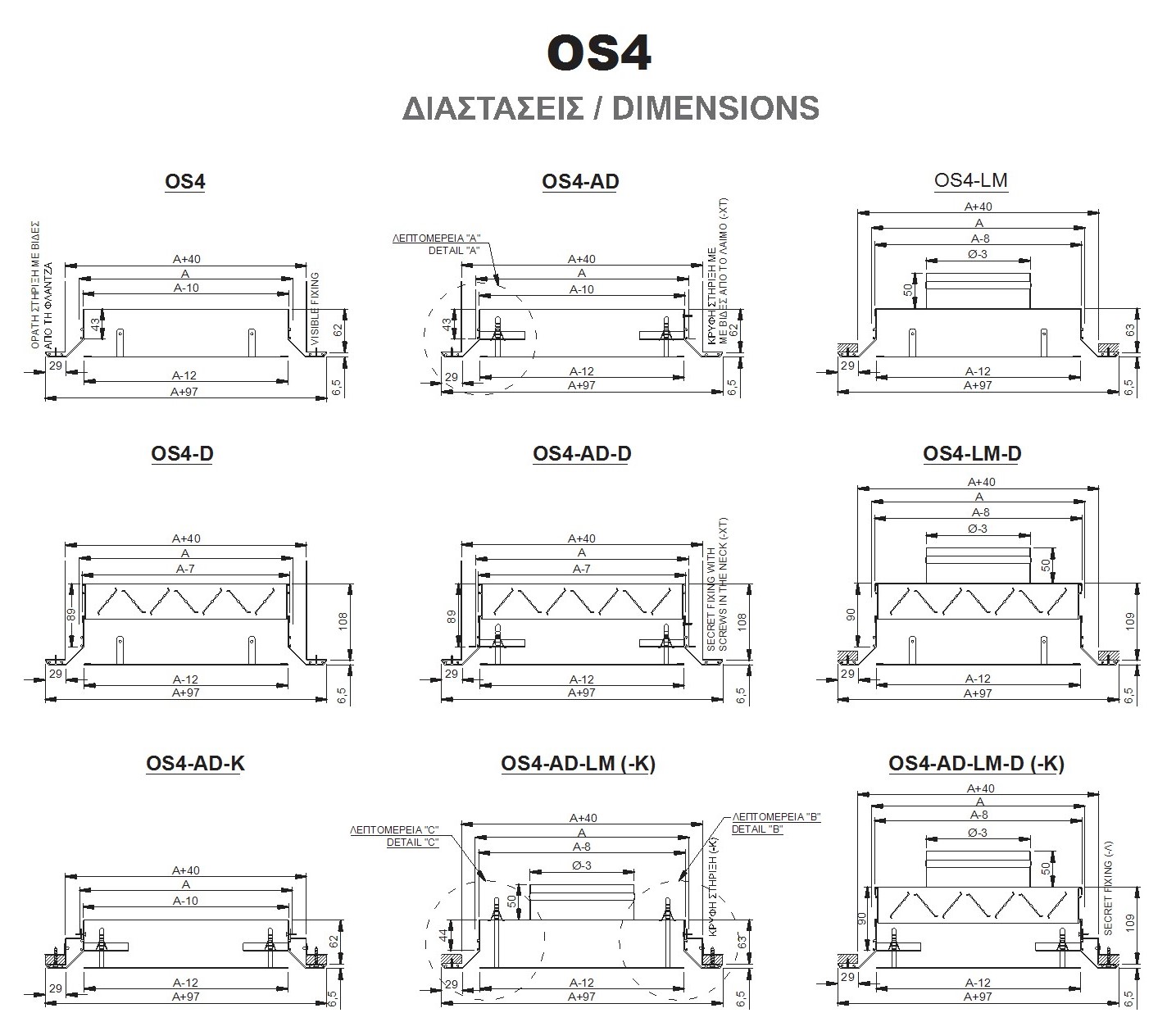

Also is available in the following executions:
- LM: With round neck in the back, painted black.

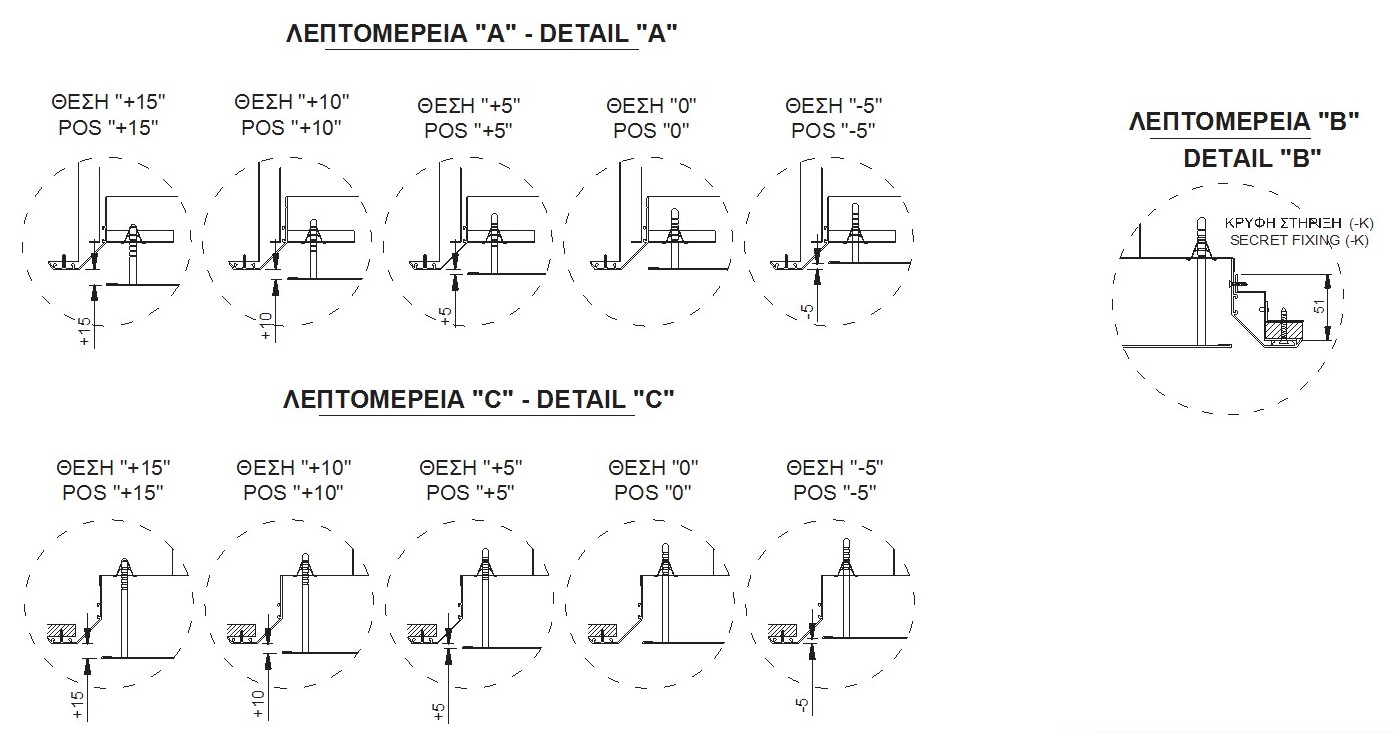

- AD: With adjustable central square piece.
- K: With secret fixing.
- D: With damper.
| Produced sizes (AΧΑ) |
|---|
| 150x150 |
| 200x200 |
| 230x230 |
| 250x250 |
| 300x300 |
| 350x350 |
| 400x400 |
| 450x450 |
| 500x500 |
| 530x530 |
| 550x550 |
| 600x600 |
