Multiple way celling/wall diffuser with independently adjustable plastic nozzles. The nozzles are white. The front plate is from steel electrostatically painted in RAL color.
Also is available in the following executions:

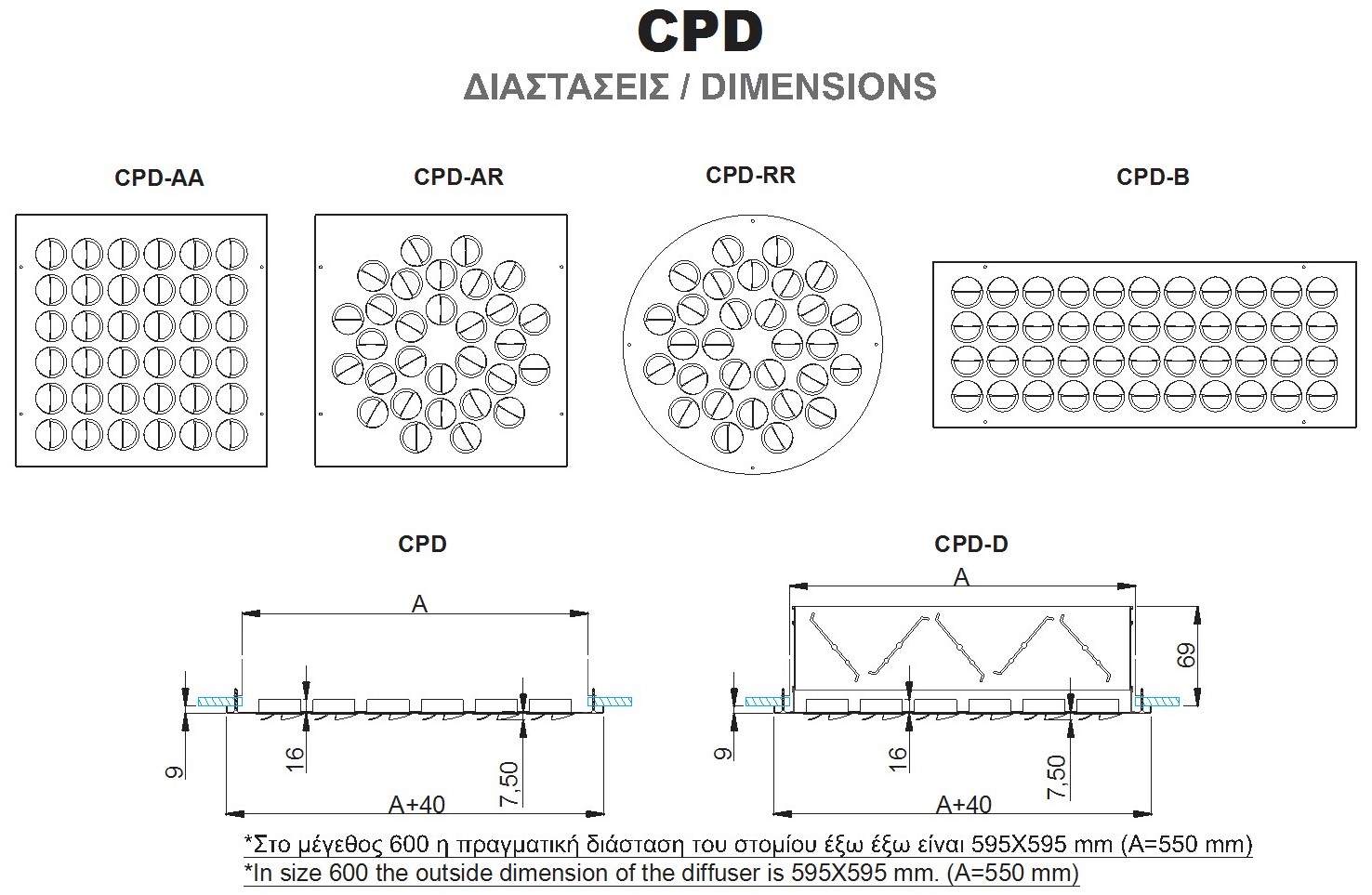

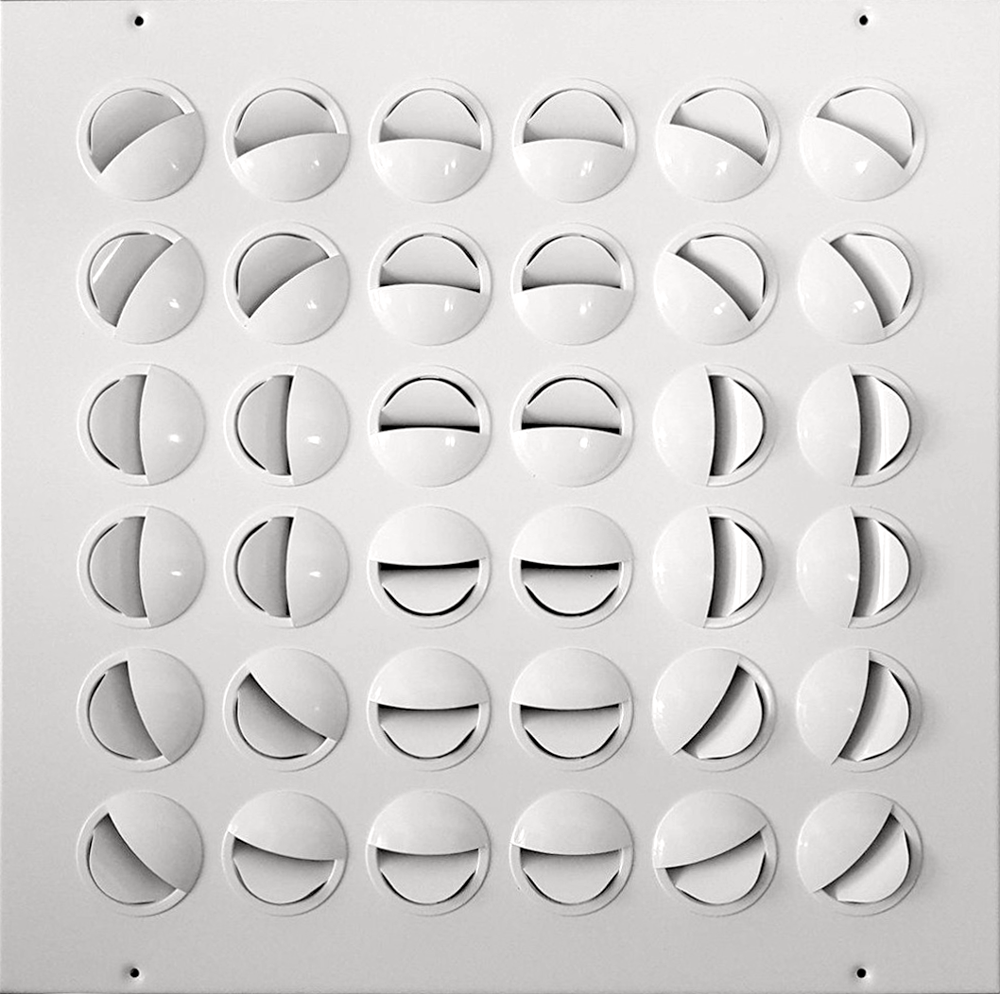

- CPD-AA: with square front plate and independently adjustable nozzles with square circumference.
- CPD-AR: with square front plate and independently adjustable nozzles with circular circumference.
- CPD-RR: with round front plate and independently adjustable nozzles with circular circumference.

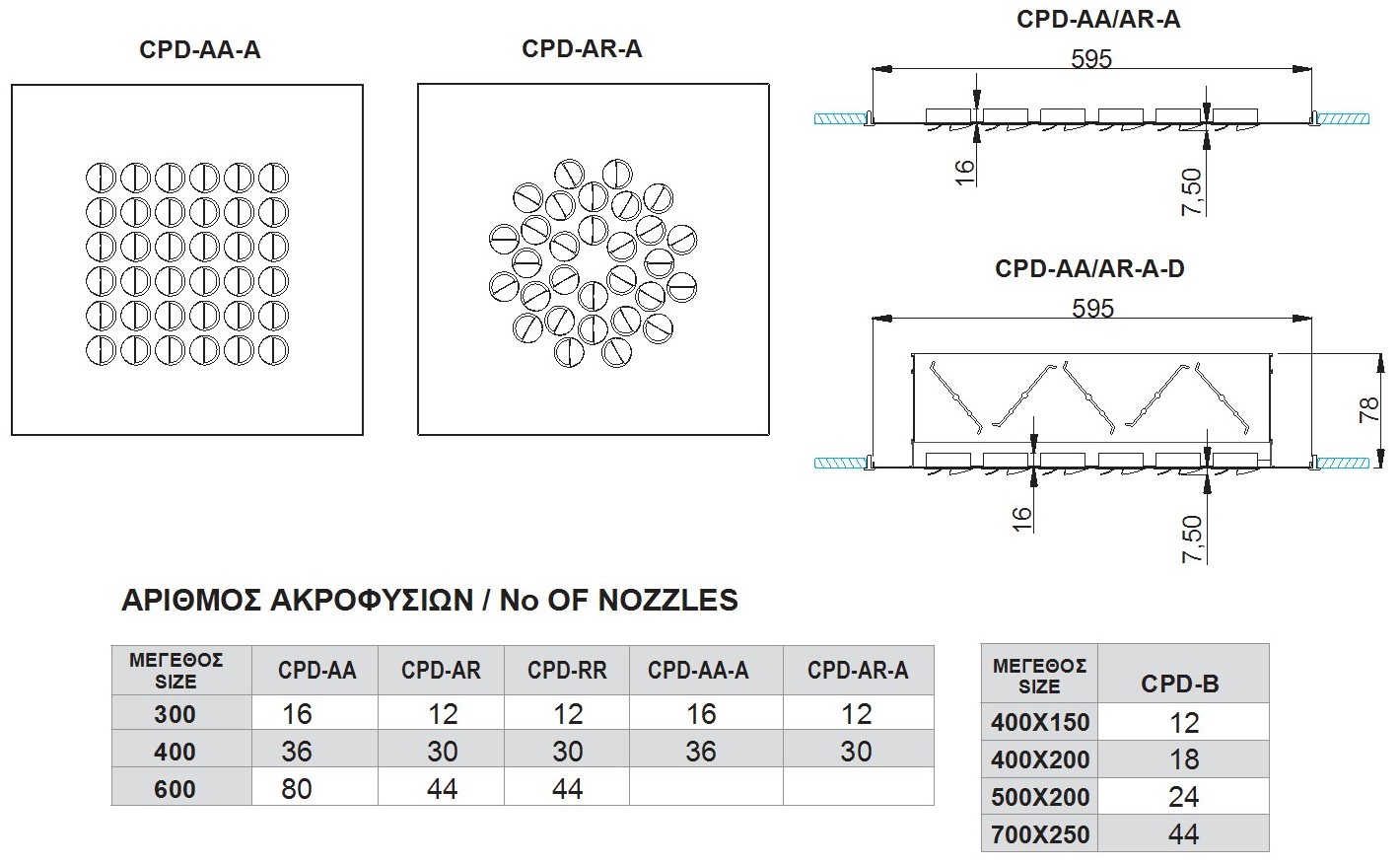

- CPD-AA-A: with square (595Χ595mm outside dimensions) front plate and independently adjustable nozzles with square circumference.
- CPD-AR-A: with square (595Χ595mm outside dimensions) front plate and independently adjustable nozzles with circular circumference.

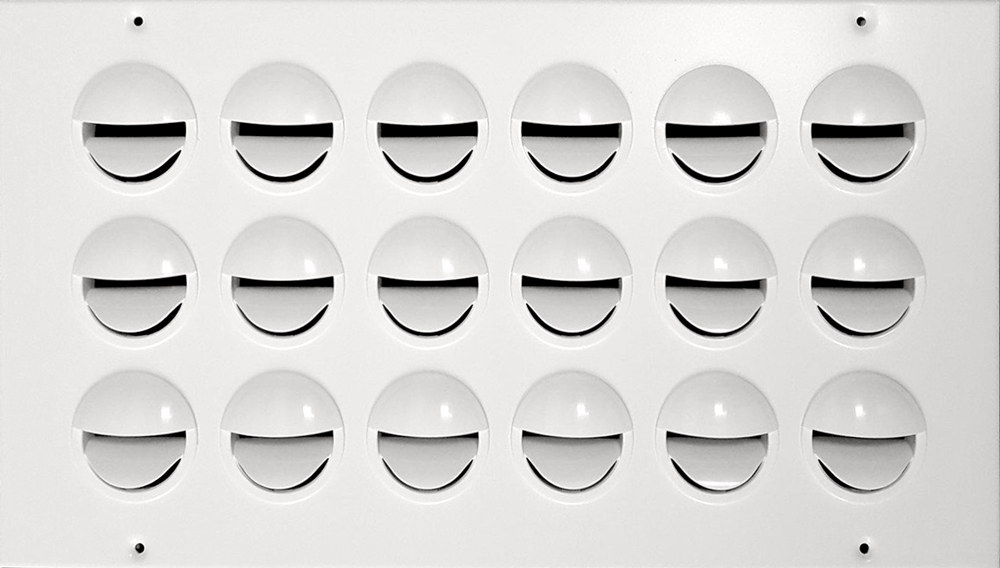

- CPD-B: with rectangular front plate and independently adjustable nozzles with rectangular circumference.
- CPD-B-FR: with rectangular front plate and independently adjustable nozzles with rectangular circumference. With aluminium frame 30mm wide around, which creates a neck in the back. Secret fixing with spring clips (KSE) is possible, for wall installation. Produced in the following sizes: 330Χ150, 400Χ150, 400Χ200 mm.
- CPD-B-N: with rectangular front plate and independently adjustable nozzles with rectangular circumference. With neck in the back. Secret fixing with spring clips (KSE) is possible, for wall installation. Produced in the following sizes: 330Χ150, 400Χ150, 400Χ200 mm.
PRODUCED SIZES:
| SIZE | CPD- AA |
CPD- AR |
CPD- RR |
CPD- AA-A |
CPD- AR-A |
|---|---|---|---|---|---|
| 300 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 400 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 600* | ✓ | ✓ | ✓ | - | - |
| ΜΕΓΕΘΟΣ | CPD- B |
|---|---|
| 400x150 | ✓ |
| 400x200 | ✓ |
| 500x200 | ✓ |
| 700x250 | ✓ |
