AMB


Round jet nozzle, made by aluminium electrostatically painted in RAL color. For wall (for cooling and heating) or ceiling (only for heating) installation in big rooms like amphitheatres and cinemas.


Is available in the following executions:

  • AMB-KO: With adjustable head in all directions for regulation of the air jet. Installation in round hole and connection with flexible air duct.

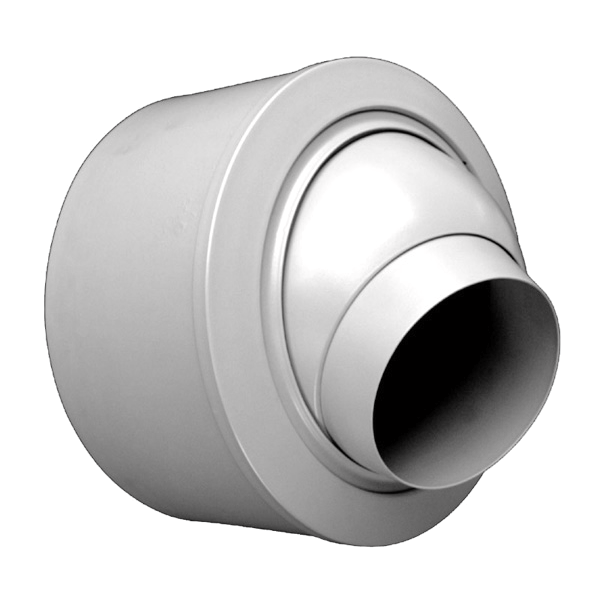

  • AMB-KL: With adjustable head in all directions for regulation of the air jet. For installation in round sleeve.
  • AMB-KΑ: With adjustable head in all directions for regulation of the air jet. For installation in the side of rectangular air duct.
  • AMB-KSR: With adjustable head in all directions for regulation of the air jet. For installation in the side of round air duct.

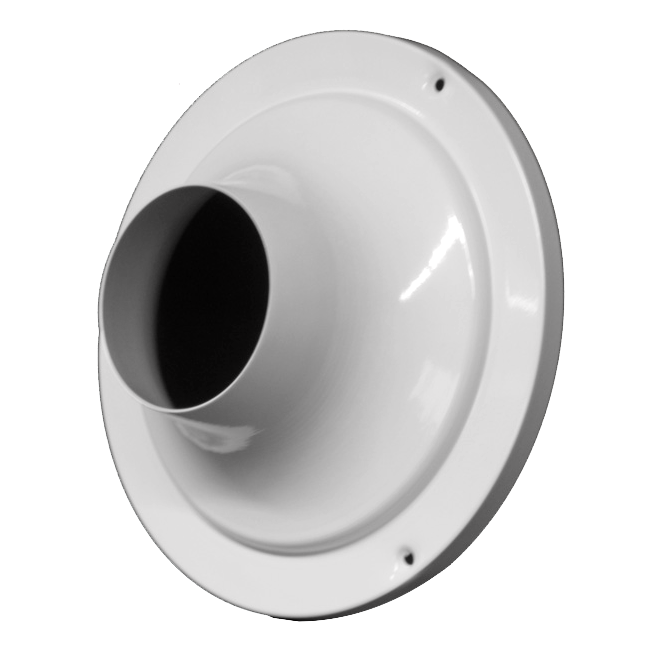

  • AMB-O: With fixed head and installation in hole.
  • AMB-KO/KL/KA/KSR-ON-OFF 220V-I/E: With electric actuator on-off 220V for adjustment of the head up-down. The actuator is mounted outside (E) in the side of the diffuser or inside (I). In the type ΑΜΒ-ΚΟ and in the sizes 80, 90, 110, 125 the actuator is mounted only inside.
  • AMB-KO/KL/KA/KSR-ANALOGUE 24V-I/E: With electric actuator analogue 24V for adjustment of the head up-down. The actuator is mounted outside (E) in the side of the diffuser or inside (I). In the type ΑΜΒ-ΚΟ and in the sizes 80, 90, 110, 125 the actuator is mounted only inside.

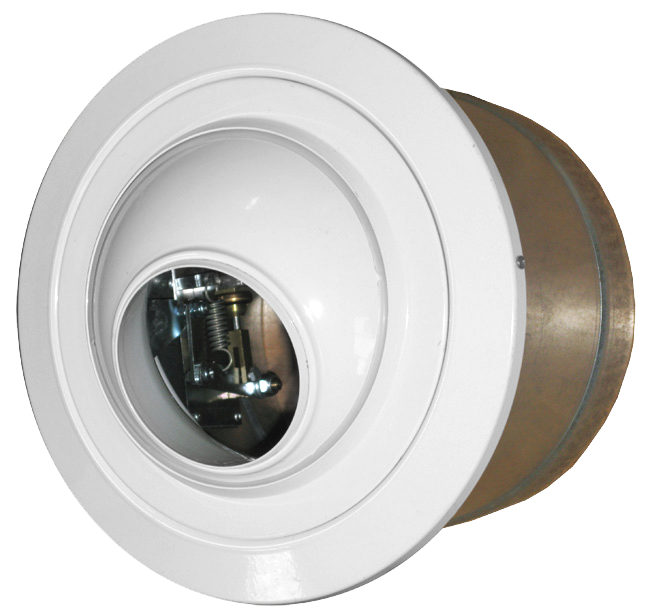

  • AMB-KO/KL/KA/KSR-AUTH: With mechanism for the automatic adjustment of the head angle according to the supply air temperature.
  • AMB-MLD-KO: With MLD blades in the back for adjustment of the throw and adjustable head in all directions for regulation of the air jet. Installation in round hole and connection with flexible air duct.
  • AMB-MLD-KL: With MLD blades in the back for adjustment of the throw and adjustable head in all directions for regulation of the air jet. For installation in round sleeve.
  • AMB-MLD-KΑ: With MLD blades in the back for adjustment of the throw and adjustable head in all directions for regulation of the air jet. For installation in the side of rectangular air duct.
  • AMB-MLD-KSR: With MLD blades in the back for adjustment of the throw and adjustable head in all directions for regulation of the air jet. For installation in the side of round air duct.
  • AMB-MLD-KO/KL/KA/KSR-ON-OFF 220V-I/E: With MLD blades in the back for adjustment of the throw and electric actuator on-off 220V for adjustment of the head up-down. The actuator is mounted outside (E) in the side of the diffuser or inside (I). In the type ΑΜΒ-ΚΟ and in the sizes 80, 90, 110, 125 the actuator is mounted only inside.
  • AMB-MLD-KO/KL/KA/KSR-ANALOGUE 24V-I/E: With MLD blades in the back for adjustment of the throw and electric actuator analogue 24V for adjustment of the head up-down. The actuator is mounted outside (E) in the side of the diffuser or inside (I). In the type ΑΜΒ-ΚΟ and in the sizes 80, 90, 110, 125 the actuator is mounted only inside.
  • AMB-MLD-KO/KL/KA/KSR-AUTH: With MLD blades in the back for adjustment of the throw and mechanism for the automatic adjustment of the head angle according to the supply air temperature.
