SEDS-R

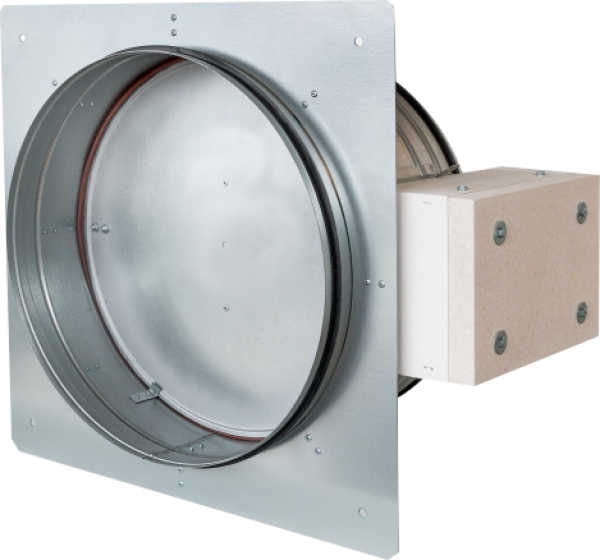

SEDS-R – Single comparement smoke extraction damper allows usage in smoke extraction ducting systems. Suitable for heat and smoke extraction from one comparement.

Characteristics

  • Round dampers from ø 100 to 630 mm
  • CE certified acc. to EN 12101-8
  • Tested in accordance with EN 1366-10
  • Classified acc. to EN 13501-4+A1 as ES90/600, actuating AA for one Fire Compartment
  • External Casing leakage class B, Over blade min. class 4, diameter 100 min. class 3
  • Cycling test in class C 300 acc. to EN 12101-8
  • Damper actuating by electrical actuator
  • Max. air speed in the system of 15 m/s, allowed pressure up to 500 Pa, or underpressure up to - 1500 Pa

For more information please contact us
